EI30/12.5 1.5VA Low Power Encapsulated Transformers




Code EI30/12.5 1.5VA

  • Frequency 50/60Hz
  • Potted under vacuum
  • Split-bobbin
  • Temperature class ta 70°C/B
  • Packaging unit: 25 pieces (tube)
  • Weight 0.08kg
  • Short-circuit-proof (where noted: 1/2/3* under Agency Approvals)
Mechanical

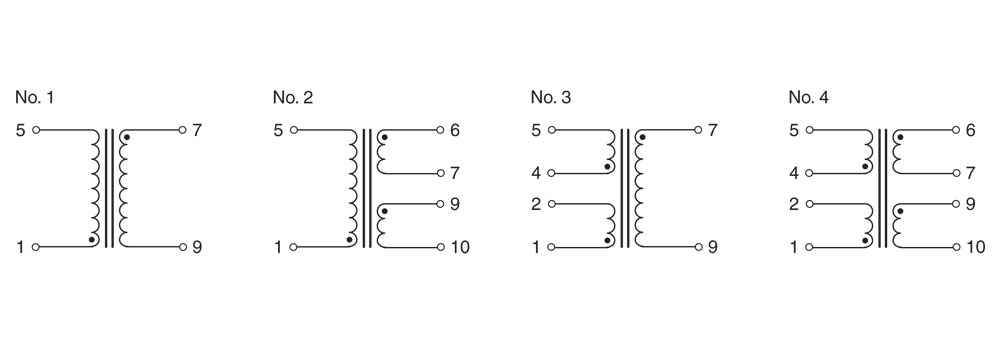

Schematic

Primary
(V)
Secondary
(V/mA)
No-Load
Voltage(V)
Schematic
No.
Part
Number
Data
Sheet
Agency
Approvals
Stock

230
6/250
8.95
1
030-7161.0
1/2/3*
1600
230
9/166
12.90
1
030-7162.0
1/2/3*
2600
230
12/125
16.70
1
030-7139.0
1/2/3*
2600
230
15/100
24.70
1
030-7163.0
1/2/3*
3700
230
18/83
29.50
1
030-7164.0
1/2/3*
1400
230
24/62
35.80
1
030-7165.0
1/2/3*
2100
230
2x6/125
2x9.15
2
030-7166.0
1/2/3*
4200
230
2x9/83
2x13.70
2
030-7167.0
1/2/3*
1700
230
2x12/62
2x17.30
2
030-7168.0
1/2/3*
2900
230
2x15/50
2x24.70
2
030-7169.0
1/2/3*
1400
230
2x18/41
2x29.40
2
030-7170.0
1
1900
230
2x24/31
2x35.80
2
030-7171.0
1
115
6/250
8.95
1
030-7150.0
1/2/3*
3700
115
9/166
12.90
1
030-7151.0
1/2/3*
1400
115
12/125
16.70
1
030-7136.0
1/2/3*
1600
115
15/100
24.70
1
030-7152.0
1/2/3*
2100
115
18/83
29.50
1
030-7153.0
1/2/3*
4200
115
24/62
35.80
1
030-7154.0
1/2/3*
1700
115
2x6/125
2x9.15
2
030-7155.0
1/2/3*
2900
115
2x9/83
2x13.70
2
030-7156.0
1/2/3*
1400
115
2x12/62
2x17.30
2
030-7157.0
1/2/3*
115
2x15/50
2x24.70
2
030-7158.0
1/2/3*
1900
115
2x18/41
2x29.40
2
030-7159.0
1
1200
115
2x24/31
2x35.80
2
030-7160.0
1
1100
2x115
6/250
8.95
3
030-7711.0
1/2/3*
2x115
9/166
12.90
3
030-7712.0
1/2/3*
1700
2x115
12/125
16.70
3
030-7713.0
1/2/3*
2x115
15/100
24.70
3
030-7714.0
1/2/3*
2x115
18/83
29.50
3
030-7715.0
1/2/3*
2x115
24/62
35.80
3
030-7716.0
1/2/3*
2x115
2x6/125
2x9.15
4
030-7717.0
1/2/3*
2x115
2x9/83
2x13.70
4
030-7718.0
1/2/3*
2x115
2x12/62
2x17.30
4
030-7719.0
1/2/3*
2x115
2x15/50
2x24.70
4
030-7720.0
1/2/3*
2x115
2x18/41
2x29.40
4
030-7721.0
1
2x115
2x24/31
2x35.80
4
030-7722.0
1
*NOTE: When checking the approval status of this product with VDE, add the prefix "BV" and the suffix "L" to the orderable Part Number (these letters will also be found on the part label). The prefix and suffix are not part of the orderable Part Number.
